LCZ-35 Indoor High-Voltage Current Transformer

products detial

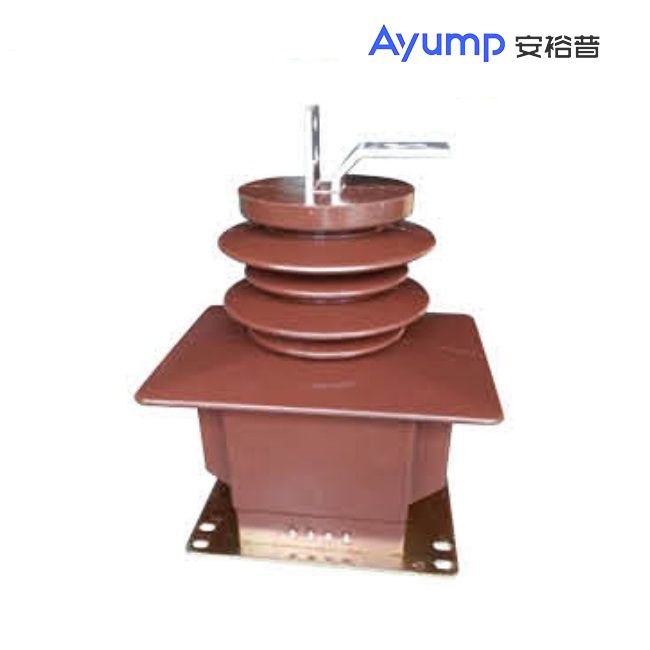

LCZ-35 Indoor High-Voltage Current Transformer

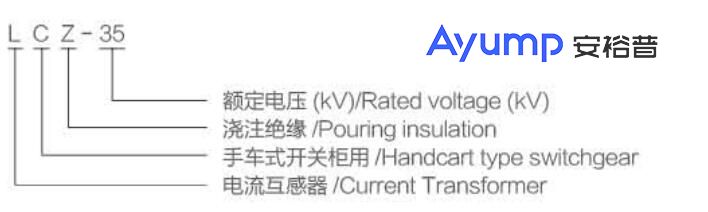

Model meaning

LCZ-35户内高压电流互感器2

Technical Parameters

◆Rated insulation level: 40.5/95/185kV;

◆Power factor of load: COSφ=0.8 (hysteresis);

◆Rated secondary current: 5A or 1A;

◆Rated frequency: 50 o r 60Hz;

◆Pollution level: Grade II ;

◆Ambient temperature: the lowest temperature is -5℃ , the highest temperature is 40℃ , and the daily average temperature is not more than 30℃ ;

◆Altitude:≤2000 meters;

◆Product standard: GB20840.1 GB20840.2.

Technical Data Sheet

Rated primary current(A)	Accurate level combination	Raled output at the corresponding accuracy leve(VA)			Accurate limit factor	Rated short-time thermal current (kA)(mean root value)	Rated dynamic power (kA）(peak)
		0.2s	0.5	10P
50-200	0.5/10P10 0.2S/10P15/10P15 0.2S/0.5 0.2S/10P20 0.2S/0.5P/10P3o 0.2S/10P/10P30 0.2S/0.5/10P/10P30	15	30	50	10 or 20	100lin	250lin
300						24	60
400-500						31.5	78
600-2000		20	30	50		45	80

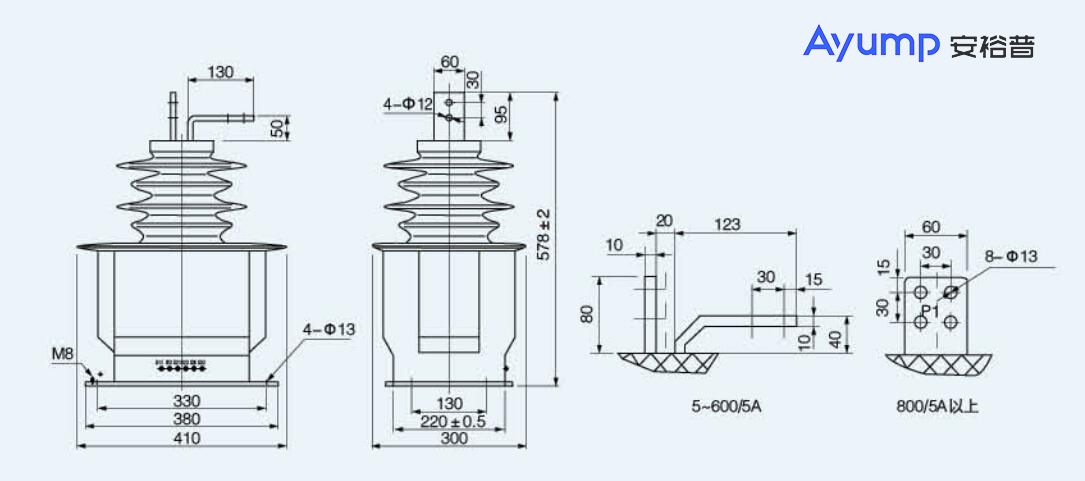

Shape and installation dimensions(mm)
