FY- SK-SX(TH) single intelligent digital humidity controller

Temperature and humidity controller model meaning

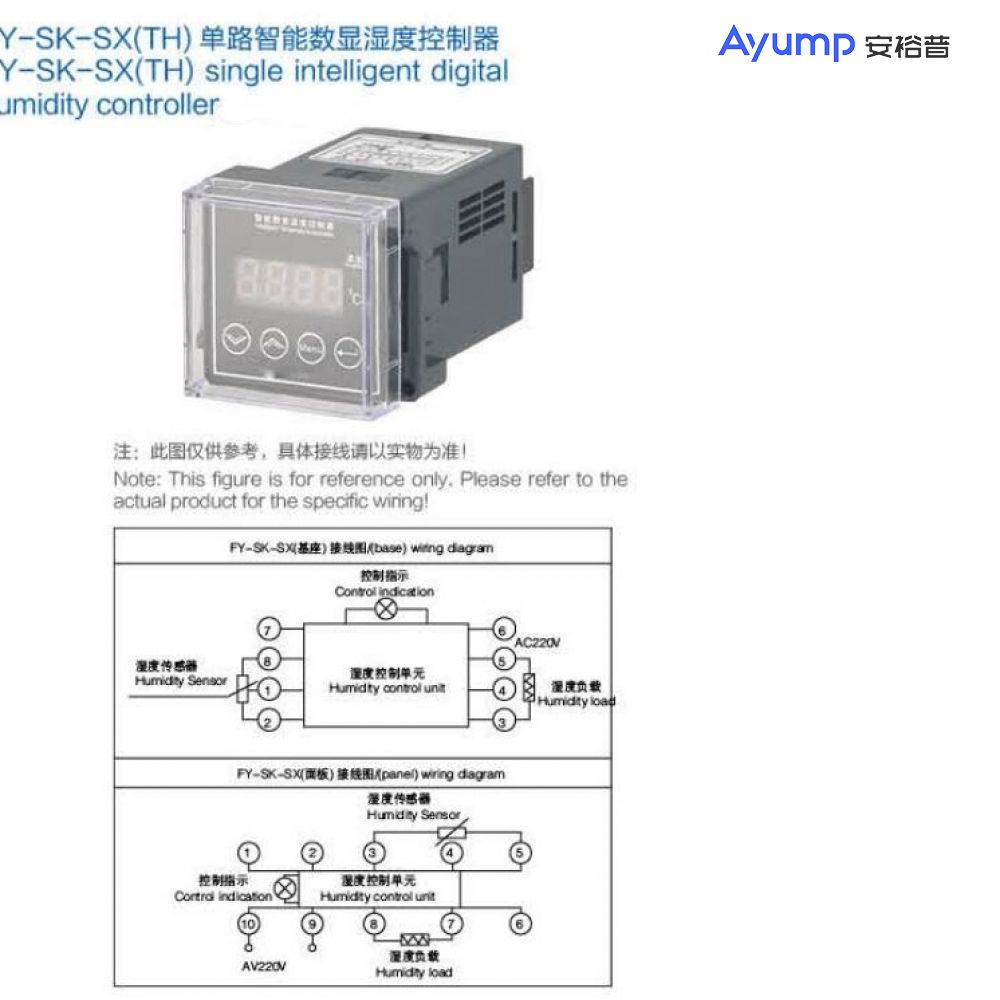

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

FY- SK-SX(TH) single intelligent digital humidity controller

The main function

It has one-way humidity control and one-way output, which can monitor the humidity of the measured environment in real time, so that the environmental humidity index meets the requirements and can effectively prevent the generation of the condenser. The set value or measured value of the humidity is displayed numerically; the user sets the humidity control bit by the button.

Technical characterstics

◆Power supply voltage: AC220V 50Hz;

◆Measurement control range: -50-99℃ Accuracy±1℃;

◆Parameter setting: upper limit: -49-99℃ Lower limit: -50-98℃ ;

◆Sensor error correction: -50-99℃ ;

◆Display mode: three LED digital tube display. 1 decimal place;

◆Response speed: typicalvalue≤5S;

◆Load output capacity: AC220VI7A (resistive load) one active output;

◆Volume: 48 x 48 x 78mm3.
