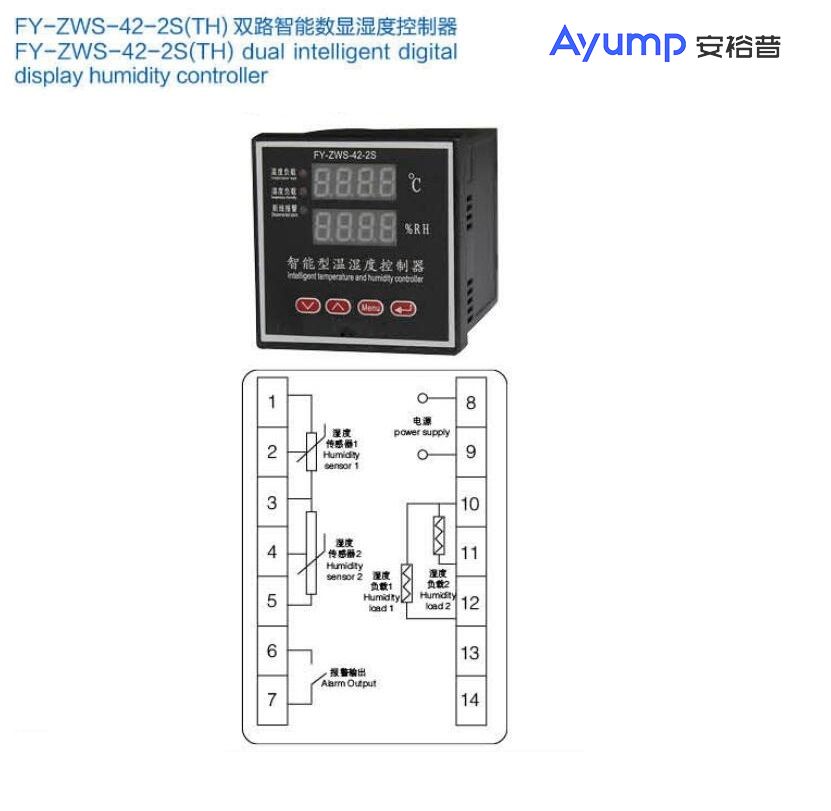

FY-ZWS-42- -2S(TH) dual intelligent digital display humidity controller

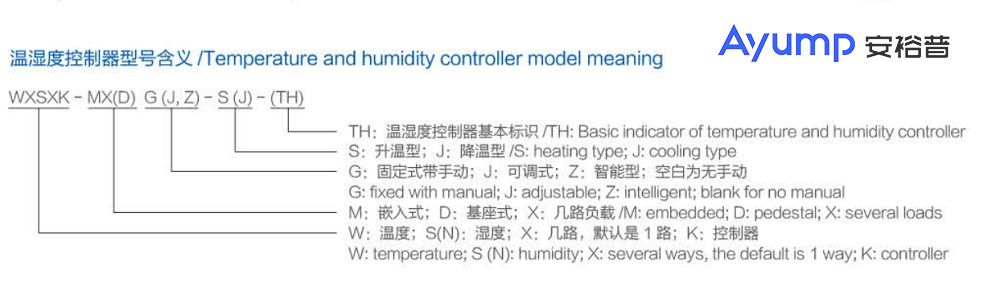

Temperature and humidity controller model meaning

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

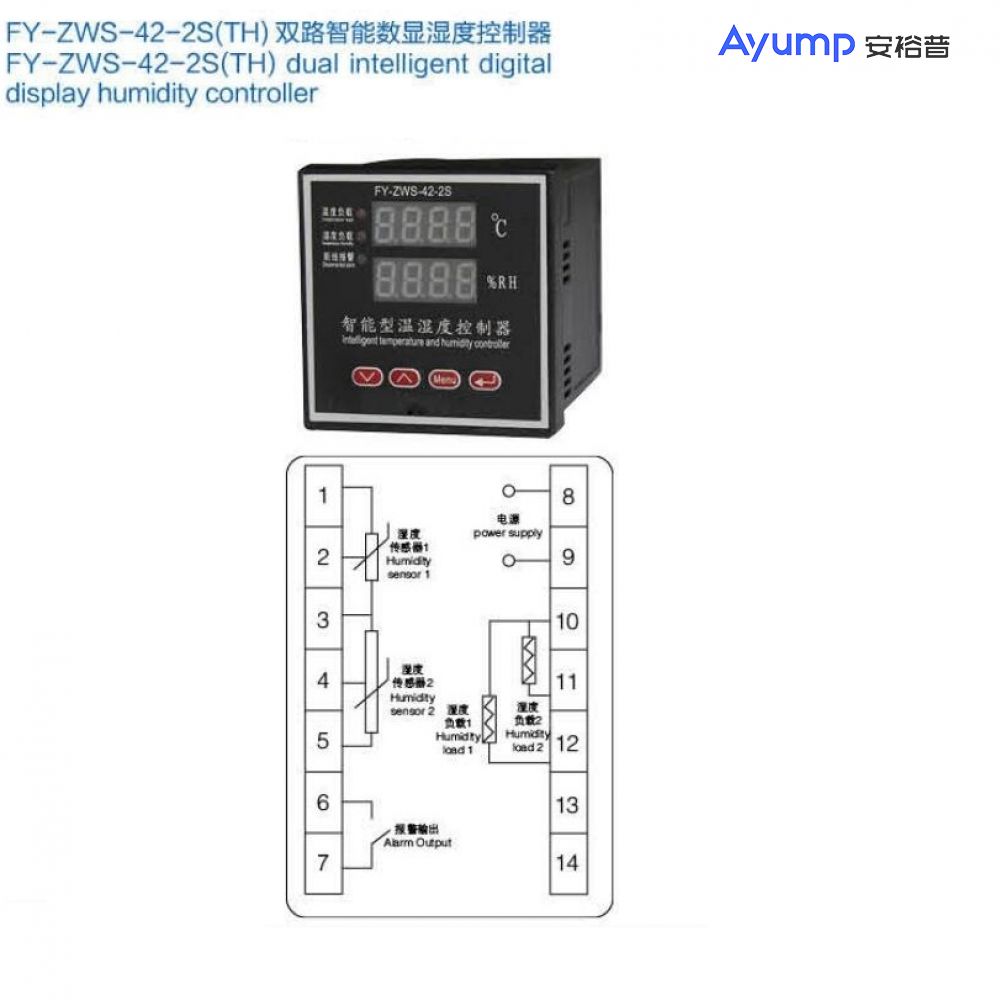

FY-ZWS-42- -2S(TH) dual intelligent digital display humidity controller

The main function

FY- ZWS-42-2S (TH) inelligent humidity controller has two digital humidity control,which can monitor the humidity of the tested environment in real time, so that theenvironmental humidity index meets the requirements and can effectively preventcondensation.. The set value or measured value of the humidity is displayed numerically.The user can set the humidity control value by the button and can automatically alarm the short circuit fault of the heating device.

The product combines heating and heating and fan dehumidification.

Technical characteristics

◆Power supply voltage: AC220V 50Hz;

◆Measurement control range: 0- 100% RH accuracy±3% RH;

◆Parameter setting: upper limit: 2-99% RH lower limit: 1-98% RH;

◆Display mode: three LED digital tubes on the top and bottom display, 1 decimal place;

◆Response speed: typical value≤5S;

◆Load relay output capacity: AC220V/5A (resistive load) two active outputs;

◆Alarm relay output capacity: AC220V) 5A (resitive load) one passive output;

◆Volume: 72x 72 x 135mm.
