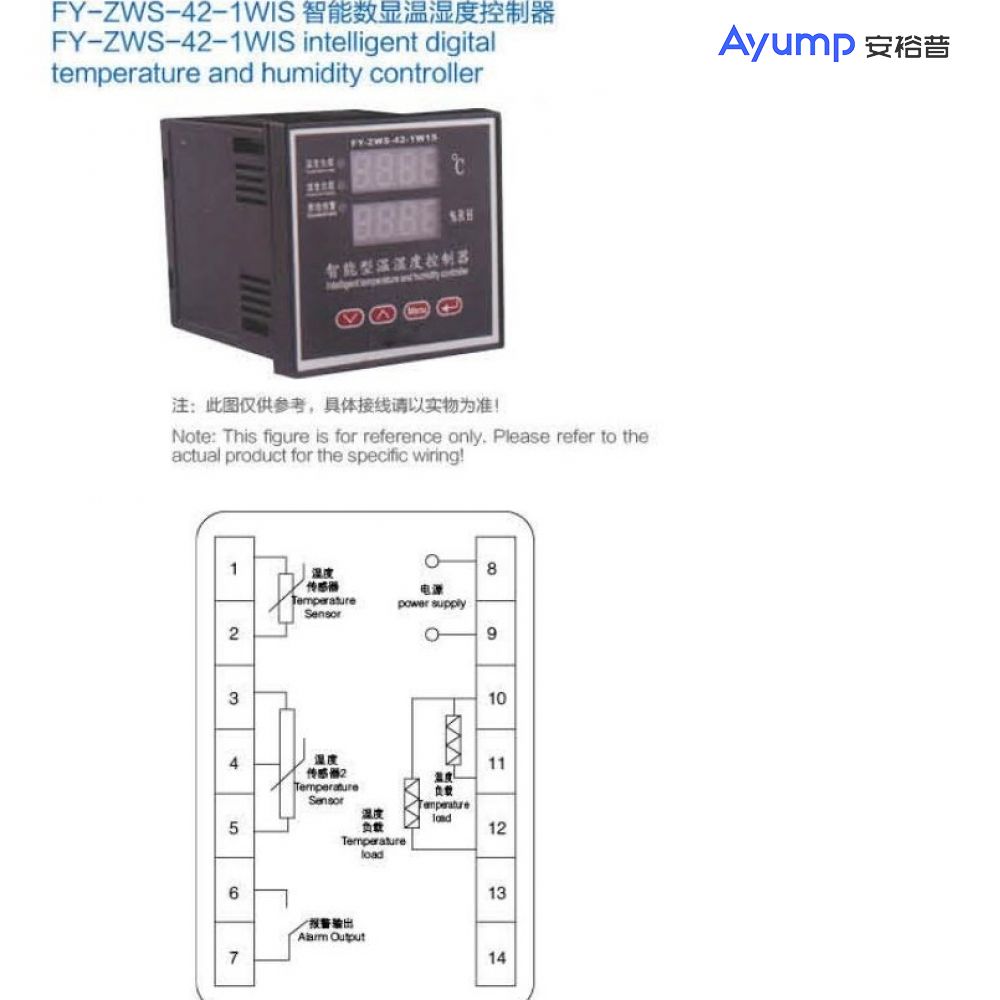

FY- ZWS-42-1WIS intelligent digital temperature and humidity controller

Temperature and humidity controller model meaning

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

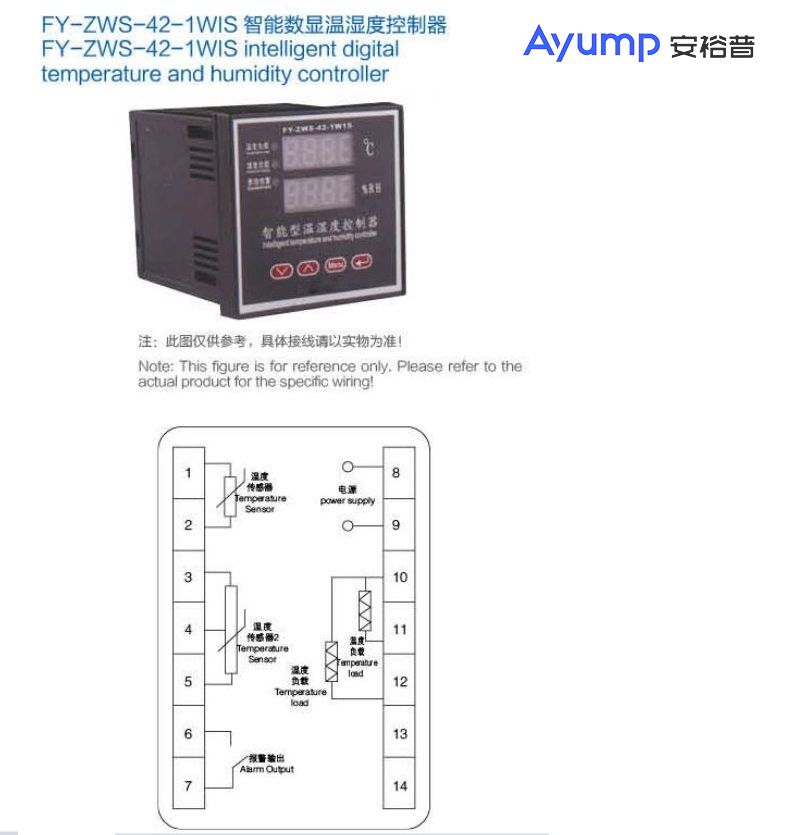

FY- ZWS-42-1WIS intelligent digital temperature and humidity controller

The main function

FY-ZWS-42-1WIS itelligent digital display temperature and humidity controller, with one-way temperature control, one-way humidity control, can accyrately monitor the temperature and humidity of the measured environment in real time. The ambient temperature and humidity, indicators are made to meet the working requirements, and the condensation can be effectively prevented.

The temperature and humidity settings or measured values are displayed numericall, and the user sets the temperature control value and humidity control by the button. And can automatically alarm the open circuit failure of the heating (cooling) device. The industry's first sensor disconnection alarm and load disconnection alarm and automatically cut off the load function, the product integrates heating and cooling type and fan cooling type.

Technical characteristics

◆Power supply voltage: AC220V 50Hz;

●Measurement control range: temperature -50~99℃ accuracy±1℃ ;

◆Humidity 0-100% RH precision soll 3%;

Parameter setting; upper limit value: temperature -49 - 99% humidity 2-99%; lower limit value: temperature -50一99℃ humidity 1-98% RH;

◆Sensor error correction: temperature -50- 99'℃，0~100% RH;

◆Display mode: three LED digital tubes on the top and bottom display, 1 decimal place;

◆Response speed: typica value ≤ 5S;

◆Load relay output capacity: AC220V/5A (resistive load) two active outputs;

◆Alarm rely output capacity: AC220V/5 passive node output;

◆Volume:72 x 72 x 95mm;

◆Opening size: 67 x 67mm.
