FY-N2K(TH) dual dew point controller

Temperature and humidity controller model meaning

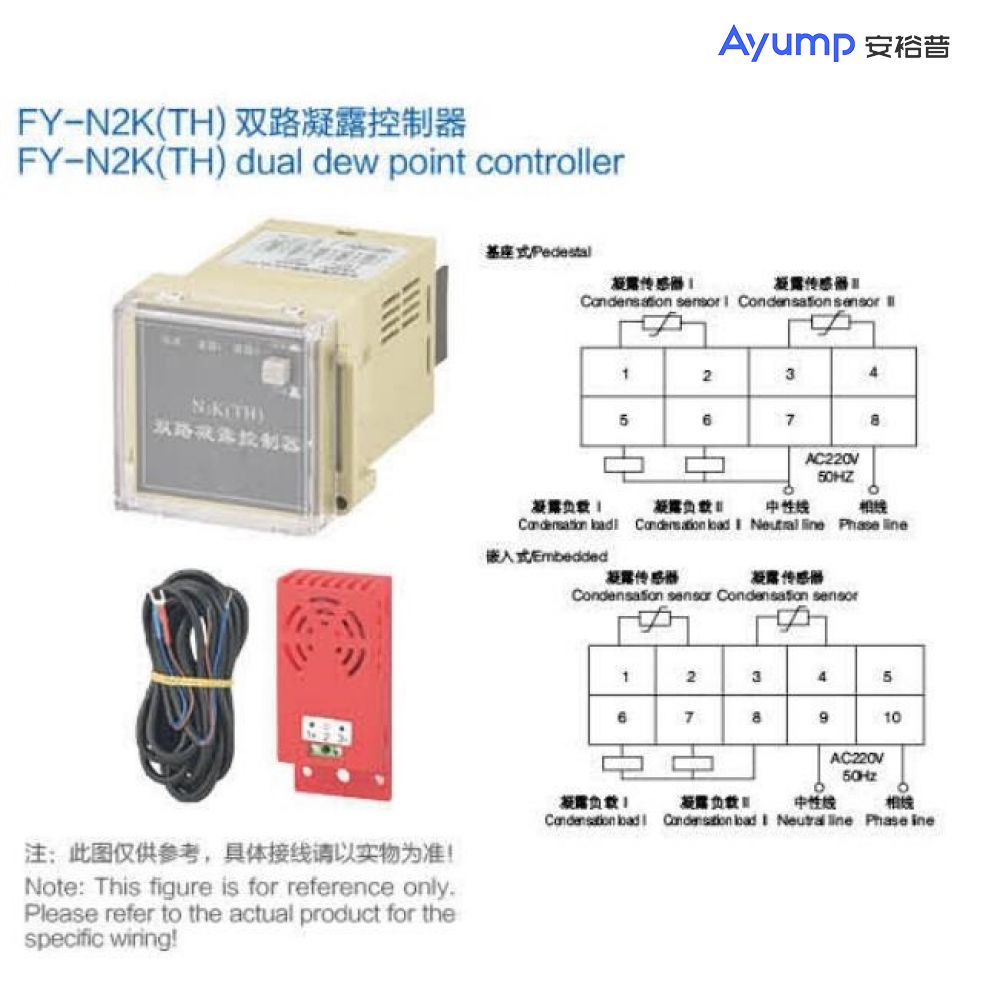

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

FY-N2K(TH) dual dew point controller

The main function

Two-way condensation control, when the temperature is too high or there will be condensation, start the load and destroy the conditions that cause condensation. It can control two different environments at the same time or achieve dual control for one environment.

Technical characteristics

◆Power supply: AC220V±10% 50Hz;

◆Temperature control: 88% RH±5% RH (at20℃ );

◆Response speed: typical value≤5s;

◆Load control: manual/ automatic conversion;

◆Output: resistive AC220V/5A (active);

◆Dimensions:48 x 48 x 78mm3.
