FY-WSK-J(TH) adjustable temperature and humidity controller (W)

Temperature and humidity controller model meaning

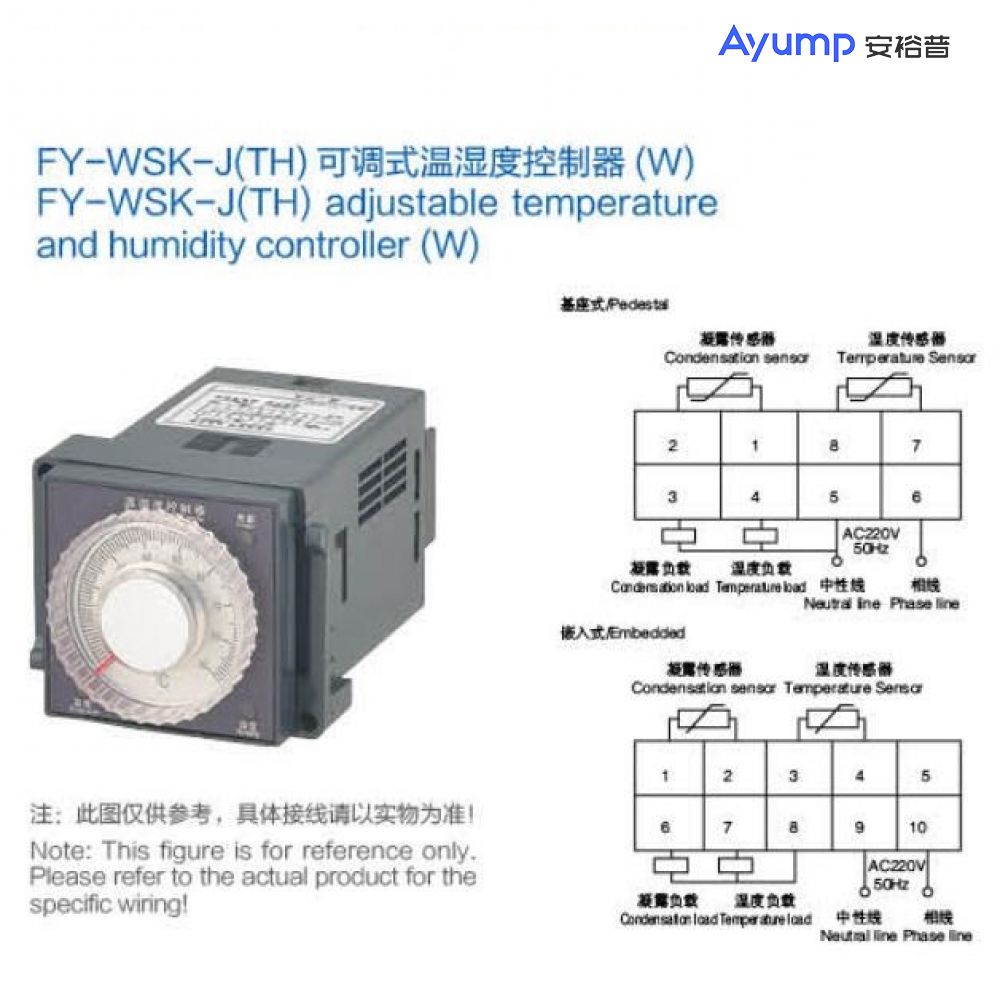

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

FY-WSK-J(TH) adjustable temperature and humidity controller (W)

The main function

It has a temperature and humidity control unit. When the humidity reaches a certain level or the temperature is lower than (above) the set value, the controller drives the heater or fan to work. Cooling type and temperature rising type.

Technical characteristics

◆Working voltage: AC220V±20%;

◆Working frequency: 50Hz;

●Machine power consumption: <3W;

◆Output current: 5A (can be equipped with heater fan);

◆Working environment: temperature -20℃ -70℃ , humidity≤95% RH;
