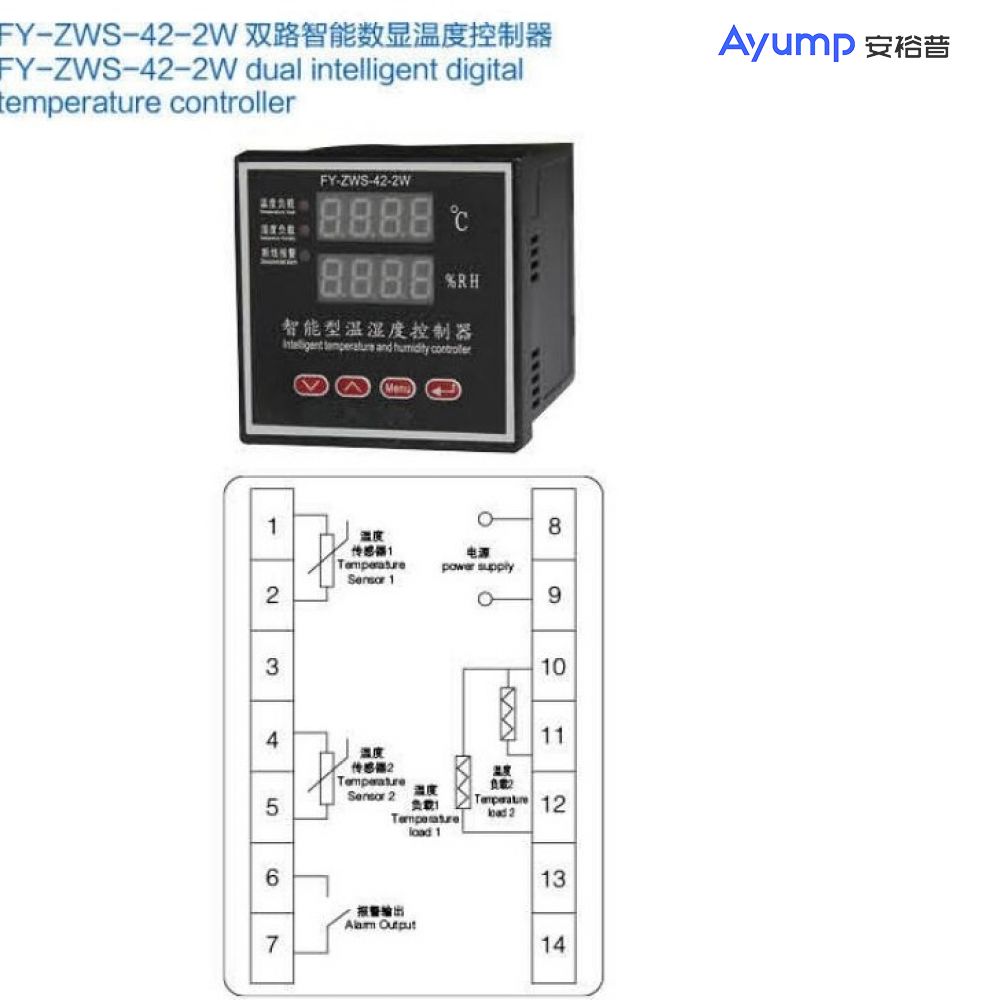

FY- ZWS-42-2W dual intelligent digital temperature controller

Temperature and humidity controller model meaning

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

FY- ZWS-42-2W dual intelligent digital temperature controller

The main function

FY-ZWS-42-2W intlligent temperature controller with two-way temperature digital display control. Real-time and precise monitoring of the temperature of the measured environment. Make the ambient temperature indicator meet the job requirements. The set value or measured value of the temperature is displayed numerically; the user sets the temperature control value by the button. And can automatically alarm the short circuit fault of the heating (cooling) device. The product integrates the heating and heating type and the fan cooling type.

Technical characteristics

◆Power supply voltage: AC220V 50Hz;

◆Measurement control range: -50-99℃ Accuracy±1℃;

◆Parameter setting: upper limit: -49-99℃ Lower limit: -50-98℃ ;

◆Sensor error correction: -50-99℃ ;

◆Display mode: three LED digital tubes on the top and bottom display, 1 decimal place;

◆Response speed: typical value≤5S;

◆Load relay output capacity: AC220V/5A (resistive load) two active outputs;

◆Alarm relay output capacity: AC220V/5A (resistive load) one passive output;

◆Volume: 72x 72 x 95mm³.
